Replacing one worn front-end part at a time can leave an older heavy-duty truck with loose steering, uneven tire wear, or another repair waiting around the corner. The Detroit Axle 80090-13 Front End 13-Piece Suspension Kit groups many common steering and suspension wear items into one vehicle-specific package. It is a practical option for a broad front-end rebuild on select 8-lug Chevrolet, GMC, and Hummer models, but fitment depends on the steering design, pitman-arm spline count, model year, and frame-bracket setup. This review explains what the kit includes, where it fits, what it leaves out, and why professional installation and alignment are sensible parts of the total job.
Quick Verdict
Rating: 8/10, recommended with fitment caveats
Best For: Owners rebuilding the front steering and suspension on a compatible 8-lug GM heavy-duty truck or SUV with a 3-groove pitman arm.
Bottom Line: The 80090-13 gives you a useful 13-part package with upper control arms, ball joints, tie rods, sway bar links, a pitman arm, an idler arm, and an idler bracket. Its main tradeoff is narrow fitment, and it does not include every possible worn front-end part.
| Specification | Detail |
|---|---|
| Brand | Detroit Axle |
| Model | 80090-13 |
| Product type | Front steering and suspension replacement kit |
| Piece count | 13 pieces |
| Position | Front |
| Pitman arm | 3-groove K6654 |
| Steering limitation | Does not fit rack-and-pinion steering |
| Wheel configuration | 8-lug applications only |
| Listed weight | 44 lb |
| Listed dimensions | 16 × 6 × 24 in |
| Warranty | Limited 10-year warranty, subject to Detroit Axle terms |
| Best use | Replacing several worn front-end components during one coordinated repair |
What Is the Detroit Axle 80090-13 Suspension Kit?
The Detroit Axle 80090-13 is a vehicle-specific front-end kit for selected GM heavy-duty trucks and SUVs from the 2001 to 2010 era. It combines steering linkage parts with suspension parts, so the name “suspension kit” does not tell the whole story. You receive upper control arms and lower ball joints for wheel control, tie rods and steering arms for steering linkage, and sway bar links for roll-control connections.
This package makes the most sense when inspection shows wear in several included parts. Replacing a complete group at the same time can reduce repeat disassembly and lets you align the truck after the major front-end work is finished. It should not be treated as a universal cure for every steering complaint because the steering box, center link, shocks, hubs, lower control arms, tires, and alignment can also affect how a truck drives.

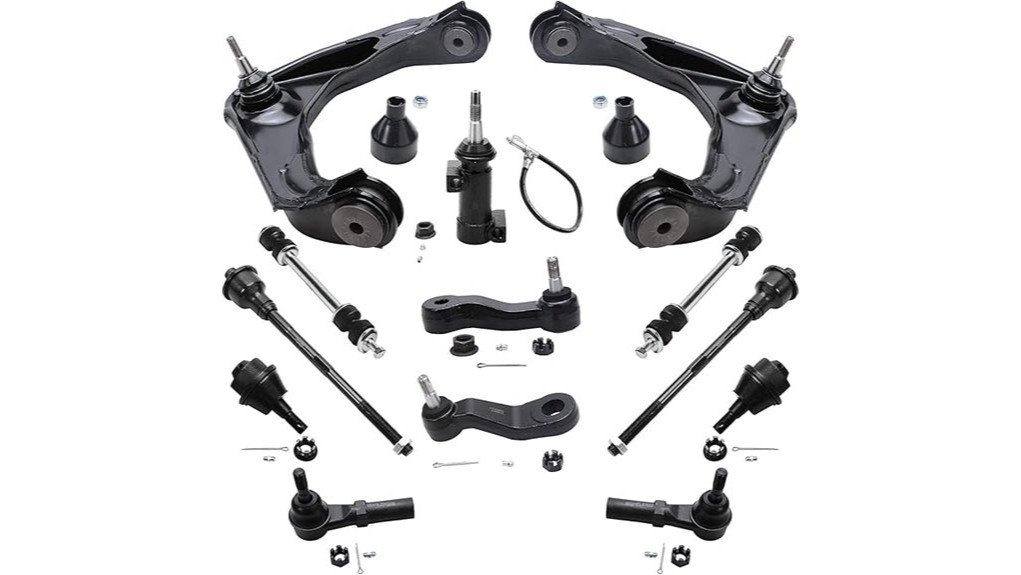

What Is Included in the 13-Piece Kit?
| Quantity | Component | Part Number | Role |
|---|---|---|---|
| 2 | Upper control arms with ball joints | K620054 | Locate the upper steering knuckle and replace the upper arm assembly |
| 2 | Lower ball joints | K6693 | Connect the lower control arm to the steering knuckle |
| 2 | Inner tie rod ends | ES3488 | Transfer steering movement through the linkage |
| 2 | Outer tie rod ends | ES3609 | Connect the steering linkage to the steering knuckles |
| 2 | Front sway bar links | K80631 | Connect the sway bar to the front suspension |
| 1 | Steering pitman arm | K6654 | Transfers steering-box movement to the center link |
| 1 | Idler arm | K6535 | Supports the opposite side of the steering linkage |
| 1 | Idler arm bracket | K6723 | Mounts and supports the idler-arm assembly |
Before You Buy: Confirm that your vehicle has an 8-lug setup, a 3-groove pitman arm, and conventional steering linkage rather than rack-and-pinion steering. Some GMC, Suburban, Yukon XL, and Hummer applications also require the “without frame bracket” configuration. Match the year, model, submodel, and notes, not just the vehicle name.
Compatibility: Which Models Work With This Kit?
The broad fitment range is useful, but each model still has steering and chassis notes. The following overview reflects the listed applications for model 80090-13:
- Chevrolet Avalanche 2500: 2002-2006
- Chevrolet Silverado 1500 HD: 2001-2003 and 2005-2006
- Chevrolet Silverado 2500: 2001-2004
- Chevrolet Silverado 2500 HD: 2001-2010
- Chevrolet Silverado 3500: 2001-2006
- Chevrolet Silverado 3500 HD: 2007-2010
- Chevrolet Suburban 2500: 2001-2010, listed without frame bracket
- GMC Sierra 1500 HD: 2001-2003 and 2005-2006, listed without frame bracket
- GMC Sierra 2500: 2001-2004, listed without frame bracket
- GMC Sierra 2500 HD: 2001-2010, listed without frame bracket
- GMC Sierra 3500: 2001-2006, listed without frame bracket
- GMC Sierra 3500 HD: 2007-2010, listed without frame bracket
- GMC Yukon XL 2500: 2001-2010, listed without frame bracket
- Hummer H2: 2003-2007, listed without frame bracket
Do not rely on the year range alone. GM used different steering and chassis configurations within some model years, and a 4-groove pitman arm or rack-and-pinion system makes this specific kit the wrong choice.
Pro Tip: Before ordering, compare the existing pitman arm, count its grooves, check the lug count, and inspect the idler-arm mounting area. A VIN lookup is helpful, but a visual check of the installed steering parts can catch mid-year or previous-repair differences.
Who Should Buy It?
Best For
- A compatible truck or SUV with wear in several included steering and suspension parts
- An owner planning one larger front-end repair followed by a professional alignment
- A buyer who wants matched replacement components in one package rather than separate orders
Skip If
- Your vehicle has rack-and-pinion steering, a 4-groove pitman arm, or a 6-lug configuration
- You need a center link, steering box, shocks, hubs, or lower control arms included
- You cannot confirm exact fitment or arrange safe installation and alignment
Materials and Build Quality
Detroit Axle states that its suspension components are built under quality-control standards and tested for impact, wear, and fatigue. The manufacturer also lists production in an ISO9002-certified facility. These claims are more useful than vague promises, but they do not remove the need to inspect every part before installation.
Check protective boots, threads, tapers, studs, bushings, grease fittings, and machined surfaces as soon as the package arrives. Shipping damage, missing hardware, or a wrong part number is easier to solve before the truck is disassembled. Keep the packaging and invoice until the repair is complete.
Installation Process and Safety
This is not a simple bolt-on accessory. The job involves safety-critical steering and suspension connections, lifting a heavy vehicle, separating tapered joints, pressing lower ball joints, and tightening fasteners to vehicle-specific specifications. A qualified mechanic is the safer choice unless you already have the correct tools, service information, and experience.
A typical repair includes supporting the truck on rated stands or a lift, removing worn parts, comparing each replacement part, installing components in the correct orientation, applying the specified torque, lubricating serviceable joints where required, and checking for interference through the steering range. Do not rely on a hydraulic jack alone, and do not guess torque values.
A professional wheel alignment should follow the repair. Tie-rod and control-arm work changes the front-end geometry, so driving without alignment can cause pulling, an off-center steering wheel, poor handling, and rapid tire wear.
How It Performs in Real Use
For a Full Front-End Refresh
The kit is most useful when several included parts are worn at the same time. Grouping upper control arms, lower ball joints, tie rods, sway bar links, and steering arms in one repair can save repeated teardown compared with replacing each part months apart.
For Loose or Wandering Steering
New tie rods, a pitman arm, and an idler arm can reduce play when those specific joints are the source of the problem. Results depend on the rest of the system. A worn steering box, center link, wheel bearing, tire, or alignment issue can leave looseness even after this kit is installed.
For Work Trucks and Tow Vehicles
A tight front end matters on a heavy truck that carries loads or tows. The repair can restore more predictable steering when the original parts are worn, but the truck should still receive a complete inspection. Suspension parts do not increase the vehicle’s payload or towing ratings.
For Long-Term Ownership
The broad component count suits owners keeping an older GMT800-based vehicle. The limited 10-year warranty adds value, but its terms matter: Detroit Axle requires proof of purchase, applies approval conditions, excludes shipping costs, and states that a kit warranty covers one part of the kit rather than replacing the entire set automatically.
Common Issues and Troubleshooting Tips
- Parts do not match: Stop before installation and recheck model, submodel, lug count, pitman-arm grooves, steering type, and frame-bracket note.
- Steering wheel is off-center or the truck pulls: Arrange a wheel alignment and have the technician inspect installation and tire condition.
- Clunking or squeaking appears: Check fastener torque, joint seating, sway bar links, boots, lubrication points, and nearby parts not included in the kit.
- Steering still feels loose: Inspect the center link, steering box, steering shaft, wheel bearings, tires, and any reused components.
- Uneven tire wear continues: Verify alignment settings, tire pressure, wheel condition, and remaining suspension wear.
Pros and Cons
Pros
- Combines 13 commonly replaced front-end parts in one package
- Includes upper control arms with ball joints plus separate lower ball joints
- Includes inner and outer tie rods, pitman arm, idler arm, and idler bracket
- Covers a wide range of compatible GM 2500 and 3500 applications
- Backed by a limited 10-year manufacturer warranty
Cons
- Fitment is limited to specific 8-lug, 3-groove, non-rack-and-pinion applications
- Does not include the center link, shocks, hubs, steering box, or lower control arms
- Installation requires advanced tools, safe lifting, correct torque data, and alignment
Is It Worth the Price?
The Detroit Axle 80090-13 sits in the value-focused complete-kit category. It can be a strong value when inspection confirms that most of the included parts need replacement, because buying and shipping each component separately can add cost and complexity.
The value is weaker when only one or two joints are worn, when your truck needs parts that are not included, or when uncertain fitment creates return risk. Budget for labor, an alignment, possible replacement hardware, and any additional worn parts found during disassembly.
How It Compares to Alternatives
A comparable TRQ 13-piece kit is worth checking when you want another complete-package option for a 3-groove application. MOOG parts are often sold individually or as retailer-assembled rebuild packages, which may suit buyers who want to choose each component or replace only confirmed wear items.
The Detroit Axle kit makes the most sense when its exact 13-part contents match your repair list and the limited 10-year warranty matters to you. A smaller kit or individual parts may be the better choice when your center link, lower control arms, or other excluded components are the main problem.
Frequently Asked Questions
Does the Detroit Axle 80090-13 fit every Silverado 2500 HD from 2001 to 2010?
No. The year range is only part of the fitment check. Your truck must match the listed submodel notes and use an 8-lug setup, a 3-groove pitman arm, and steering linkage rather than rack-and-pinion steering.
What exactly comes in the 13-piece kit?
You get two upper control arms with ball joints, two lower ball joints, two inner tie rods, two outer tie rods, two sway bar links, one pitman arm, one idler arm, and one idler arm bracket.
Does this kit include a center link or lower control arms?
No. It includes upper control-arm assemblies and lower ball joints, but not lower control arms. It also does not include the center link, steering box, wheel hubs, shocks, or tires.
Can this kit fix loose steering?
It can help when play comes from worn tie rods, the pitman arm, the idler arm, ball joints, or control-arm joints included in the kit. It will not correct looseness caused by the steering box, center link, wheel bearings, tires, or another excluded part.
Is professional installation recommended?
Yes. Front steering and suspension work is safety-critical and may require a lift or rated stands, joint separators, a ball-joint press, a torque wrench, and vehicle-specific procedures. Incorrect installation can cause loss of control or component damage.
Do I need an alignment after installation?
Yes. Replacing tie rods, control arms, or ball joints can change toe, camber, and steering-wheel position. Arrange a professional alignment before returning the vehicle to normal use.
How does the 10-year warranty work?
Detroit Axle lists suspension parts under a limited 10-year warranty. Keep your dated invoice and review the current terms because approval is required, shipping costs are excluded, and a kit claim covers the defective part rather than automatically replacing the entire kit.
What should I inspect before the mechanic starts?
Confirm all 13 parts and part numbers, then inspect boots, studs, threads, bushings, tapers, grease fittings, and shipping condition. Also ask the mechanic to inspect excluded parts so you do not align the truck before another necessary repair.
The Bottom Line
The Detroit Axle 80090-13 is a well-rounded value kit for a compatible owner who needs several front steering and suspension parts at once. Buy it only after confirming the 8-lug, 3-groove, non-rack-and-pinion fitment, and skip it when your main worn parts are outside the package.
